Multi-Objective Black-box Optimization#

In this tutorial, we will introduce how to optimize multi-objective problems with OpenBox.

Problem Setup#

We use the multi-objective problem ZDT2 with three input dims in this example. As ZDT2 is a built-in function, its search space and objective function are wrapped as follows:

from openbox.benchmark.objective_functions.synthetic import ZDT2

dim = 3
prob = ZDT2(dim=dim)

import numpy as np
from openbox import space as sp
params = {'x%d' % i: (0, 1) for i in range(1, dim+1)}
space = sp.Space()
space.add_variables([sp.Real(k, *v) for k, v in params.items()])

def objective_function(config: sp.Configuration):
    X = np.array(list(config.get_dictionary().values()))
    f_0 = X[..., 0]
    g = 1 + 9 * X[..., 1:].mean(axis=-1)
    f_1 = g * (1 - (f_0 / g)**2)

    result = dict()
    result['objectives'] = np.stack([f_0, f_1], axis=-1)
    return result

After evaluation, the objective function returns a dict (Recommended). The result dictionary should contain:

‘objectives’: A list/tuple of objective values (to be minimized). In this example, we have two objectives so the tuple contains two values.
‘constraints’: A list/tuple of constraint values. If the problem is not constrained, return None or do not include this key in the dict. Non-positive constraint values (“<=0”) imply feasibility.

Optimization#

from openbox import Optimizer
opt = Optimizer(
    prob.evaluate,
    prob.config_space,
    num_objectives=prob.num_objectives,
    num_constraints=0,
    max_runs=50,
    surrogate_type='gp',
    acq_type='ehvi',
    acq_optimizer_type='random_scipy',
    initial_runs=2*(dim+1),
    init_strategy='sobol',
    ref_point=prob.ref_point,
    time_limit_per_trial=10,
    task_id='mo',
    random_state=1,
)
history = opt.run()

Here we create a Optimizer instance, and pass the objective function and the search space to it. The other parameters are:

num_objectives and num_constraints set how many objectives and constraints the objective function will return. In this example, num_objectives=2.
max_runs=50 means the optimization will take 50 rounds (optimizing the objective function 50 times).
surrogate_type=‘gp’. For mathematical problem, we suggest using Gaussian Process (‘gp’) as Bayesian surrogate model. For practical problems such as hyperparameter optimization (HPO), we suggest using Random Forest (‘prf’).
acq_type=‘ehvi’. Use EHVI(Expected Hypervolume Improvement) as Bayesian acquisition function. For problems with more than 3 objectives, please use MESMO(‘mesmo’) or USEMO(‘usemo’).
acq_optimizer_type=‘random_scipy’. For mathematical problems, we suggest using ‘random_scipy’ as acquisition function optimizer. For practical problems such as hyperparameter optimization (HPO), we suggest using ‘local_random’.
initial_runs sets how many configurations are suggested by init_strategy before the optimization loop.
init_strategy=‘sobol’ sets the strategy to suggest the initial configurations.
ref_point specifies the reference point, which is the upper bound on the objectives used for computing hypervolume. If using EHVI method, a reference point must be provided. In practice, the reference point can be set 1) using domain knowledge to be slightly worse than the upper bound of objective values, where the upper bound is the maximum acceptable value of interest for each objective, or 2) using a dynamic reference point selection strategy.
time_limit_per_trial sets the time budget (seconds) of each objective function evaluation. Once the evaluation time exceeds this limit, objective function will return as a failed trial.
task_id is set to identify the optimization process.

Then, opt.run() is called to start the optimization process.

Visualization#

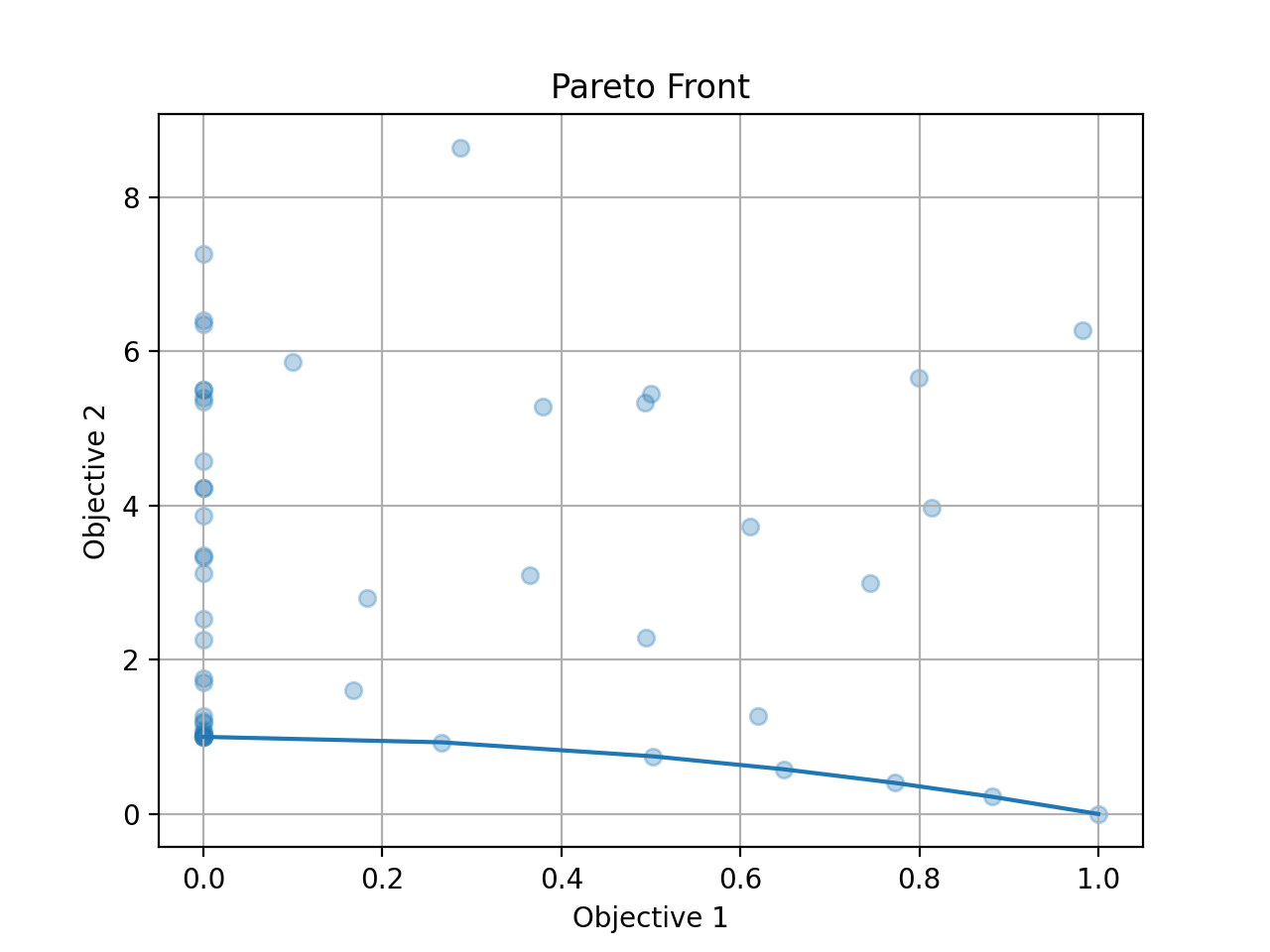

Since we optimize both objectives at the same time, we get a pareto front as the result. Call opt.get_history().plot_pareto_front() to plot the pareto front. Please note that plot_pareto_front only works when the number of objectives is 2 or 3.

import matplotlib.pyplot as plt

history = opt.get_history()
# plot pareto front
if history.num_objectives in [2, 3]:
    history.plot_pareto_front()  # support 2 or 3 objectives
    plt.show()

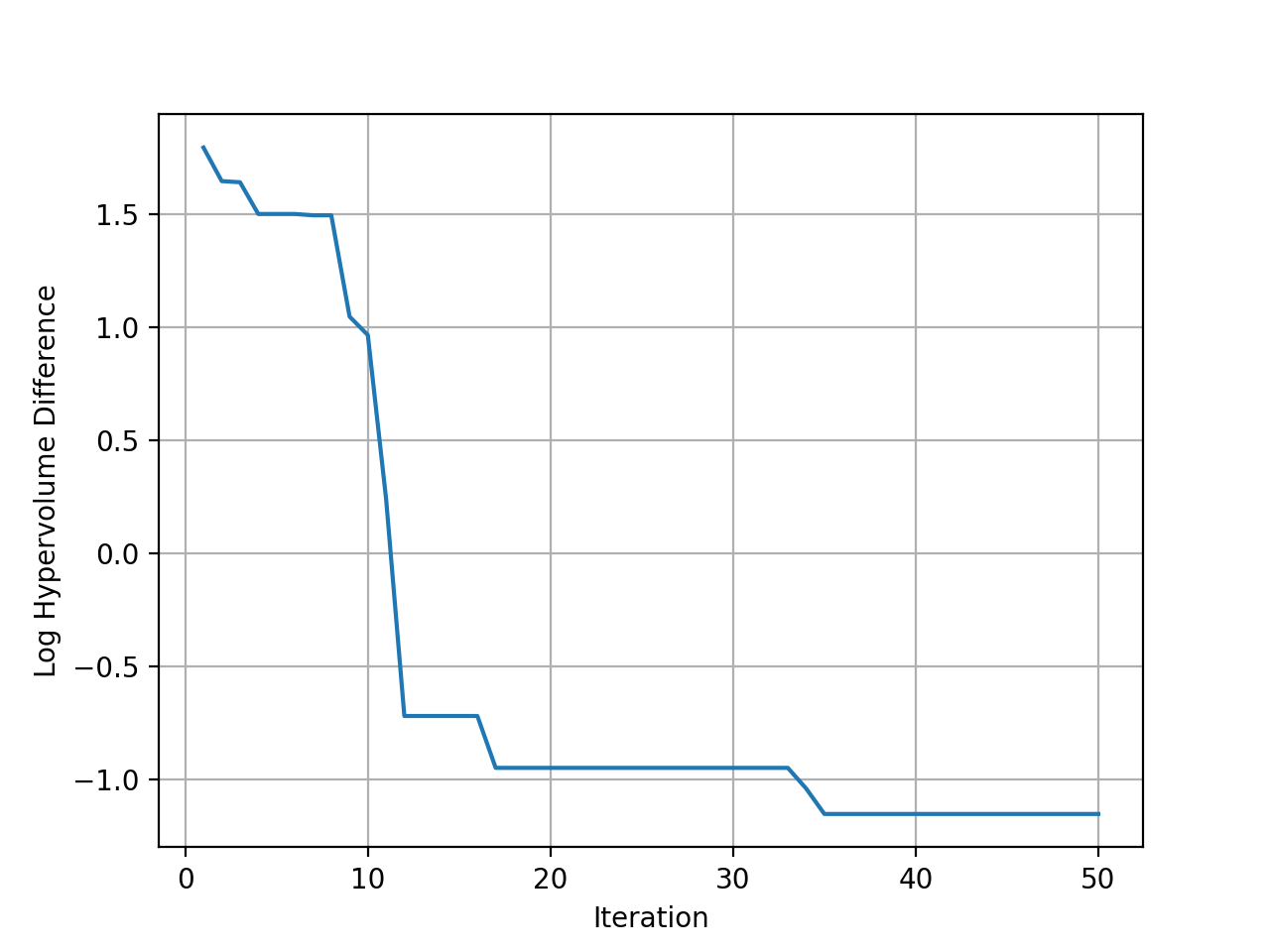

Then plot the hypervolume difference during the optimization compared to the ideal pareto front.

# plot hypervolume
history.plot_hypervolumes(optimal_hypervolume=prob.max_hv, logy=True)
plt.show()
